Advantage：
1. Three Welding type all in one simulator: SMAW, GMAW, AND GTAW
2. Various gas and welding job options
3. All welding position supported
4. Teacher Server and control

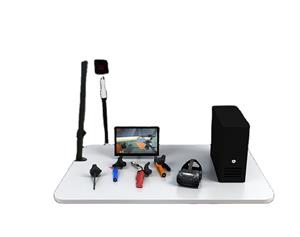

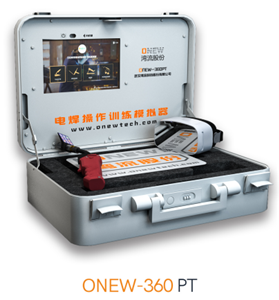

Virtual Welding Training Simulator ( Onew -360s, Onew-360mini, Onew-360pt)
It is a virtual training and evaluating simulation machine and related software for welding skill learning and testing.
It has training on shielded metal arc welding, gas metal arc welding and gas tungsten arc welding and other welding type.
It has the advantages of environmental protection, energy saving, general welding operation skill training and evaluation of integrated features. Its revolutionary innovation has changed the traditional welding training mode, and it is the leading machine and system for training the welding engineers and workers.
The product uses the low delay efficient acquisition technology, accurate optical positioning and touch the force feedback technology, solved many problems of the traditional welding training. It make the trainer feel real welding process in the simulation and the training process is high efficient.
Product Introducton and Photo：
Specification for welding simulator（ONEW—360S） | |
Product | Welding simulator |
Vision technology | Virtual reality (VR) |
Input supply | Single phase 110 - 230V, 50 - 60 Hz, 5 - 11A |
Learning concepts | Didactic |
Process simulated | Smaw, Gmaw, Gtaw |
Joint configuration | Butt, fillet, lap, pipe to plate and pipe to pipe |
Welding position - Basic | 1G to 4G (Upto overhead) |
Welding position - Advanced | 5G to 6G (pipe to pipe and pipe to plate) |
Skills learned | ARC Length, speed, work angle, travel angle & straightness |
Defects analysis | Porosity & Spatter |
Type of workpieces | Haptic workpieces |
Work stand | Singlestation |
Analysis modes | Video replay and report |
Evaluation methodology | Objective (score) / graphical (trends)evaluation |
Viewing points | HD Vision helmet, simulator system and projector(optional) |
Thickness of materials | 3.0 , 6.0 & 10.0 mm. |
Following Features in the Welding Simulator：
* Viewing from helmet - HD Vision
* Different levels of practice (degree of difficulty)
* Every weld bead to be evaluated by the simulator
* Guidance for Skill parameters during welding (Continuously)
* Guidance for Ideal vision of welder during welding (Continuously)
* Free Teacher software with Create, Edit and Delete options for Courses, Modules and Student details.
* Possibility to include additional process and improvements in the same simulator
* Possibility to include pdf uploads in any Indian language of choice
* Remote Maintenance and updates through online
* Facility to monitor Performance of each student
* Learning through didactic and trainer guidance
* Colour - 32Bit True colour
* Facility to connect to Monitor
* Protection against - Overcurrent, UnderVoltage, OverVoltage and ShortCircuit.
* Polarity selection - DC+, DC-, and AC
Simulator Parameters：
* CC / CV Function
* Polarity selection DC+, DC- and AC
* Digital display of Current, Voltage , Wire feeedspeed & Gas pressure adjustment
* Provision for selection of 2 Step and 4 Step trigger options in GMAW process.
* GMAW and GTAW torches to be of Industrial type with Euro Connector
* SMAW Electrode holder to be of Industrial type
