Brand: Onew 210-GOC
Product origin: China
Delivery time: 90 days after confirm order
Supply capacity: 1 set per 3 months
Bridge is a kind of bridge crane running on elevated track, also known as crown block. The bridge of the bridge crane runs longitudinally along the track laid on the elevated on both sides, and the lifting trolley runs laterally along the track laid on the bridge to form a rectangular working range, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment. This crane is widely used in indoor and outdoor warehouses, factories, wharfs and open storage yards.
Product features:
1. Eight crane training modules all in one simulator
2. True restoration of port crane operation process
3. Real physical collision and rope system
4. 6 Dof of driver cabin movement
5. Teacher control system
6. Accident simulation system

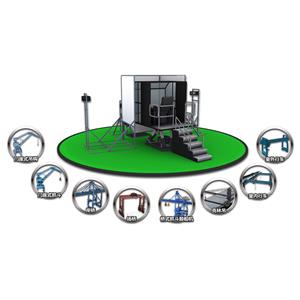

ONEW-210 General Overhead Crane Driver Simulator
Crane operator training simulator is a high-tech product, which integrates the technical contents of many disciplines such as crane dynamics, crane kinematics, digital image processing, computer graphics, sensing and control technology, information technology, modern crane operation technology, safety operation specifications and so on. It represents the development direction of modern vocational education and is a kind of green environmental protection. It is an advanced technology of modern crane operator training and assessment with no carbon emission and low cost. The comprehensive simulation system of large port crane can provide a full three-dimensional graphic display of virtual working environment synthesized based on the principle of virtual reality. In the simulation system, the crane operator will sit in a cab surrounded by a real and interactive world. The crane simulation system combines visual information and audio technology, which can simulate the real working environment very realistically.
The main functions of crane operator training simulator include:
1. The simulator can be used for multiple purposes. It has the following eight crane training modules, and can expand the training functions of other models:
(1) Quayside container bridge crane;
(2) Yard container cranes (tire, orbital);
(3) Bridge grab ship unloader;
(4) Portal (grab) crane;
(5) Gantry grab (hook) crane;
(6) General overhead crane;
(7) Offshore pedestal crane (Rig Crane)
(8) Rotary floating cranes (container spreader, hook)
2. Be able to simulate the working environment, process, basic operation skills, collaborative workflow, etc. of various posts in the container terminal.
3. The loading and unloading process analysis and test of container terminal and bulk cargo terminal can be carried out based on the real operation data of the terminal.
4. The crane driving and operation environment is made in a typical scene of a large port, and the environment is highly realistic. The seat and operation linkage console shall be the same as the actual crane driver's cab and consistent with the actual driving and operation mode environment.
5. The simulator can generate training conditions under different climatic conditions;
6. The driver's bridge of the simulator can complete the six degree of freedom spatial simulation movement, and its dynamic characteristics are consistent with the actual crane corresponding to the simulation;
7. The simulator have good compatibility and expansibility. In order to add training software for other types of cranes in the future, it is not necessary to add or change the main hardware configuration;
8. The simulator can carry out the crane driver examination. The examination procedures and contents meet the national or industrial standards, and can be slightly adjusted according to the changes of the examination procedures;
9. The simulator design idea is novel and the design goal is clear. For the training and assessment of crane drivers, the system hardware composition is simple, easy to manage and maintain, and have high reliability, good stability and easy to use.
10. The sound effect of relevant simulated collision can connect the picture to the greatest extent and reflect various realistic effects.
11. The whole equipment is humanized and realistic to the greatest extent, simulating the specified crane type, and the operation is real, convenient and safe.
Compared with the traditional training, which has the following advantages:
1. It can greatly reduce the energy consumption in traditional training, eliminate the possibility of occurrence of traditional training accident.
2. The low cost of repeated training, and single expansion of six kinds of port crane operation training;
3. Scene reproduction technology. Very flexible setting training strength suitable for training (the truck arrived at the frequency and position); can easily change the training environment (such as wind, rain, fog and other weather) and the change of technical parameters (such as the damping coefficient, crane sling shaking agencies operating speed parameters), effectively enhance the practical ability of port crane operation trainer.
Size and Package:
Size: Length * Width * Height: 5.6 * 7 * 3.5m
Weight: 2000 kg
Package Details: wooden box/20 ft container/40 ft container.
